Molecular Magnetic Resonance and Ultrasound Imaging of Tumor Angiogenesis

Marie Poirier-Quinot1,2 , Ingrid Leguerney1,2, Ludovic De Rochefort1,2, Stéphanie Pitre-Champagnat1,3, Xavier Violas4, Sandra Robin1,3, Rose-Marie Dubuisson1,2, Jean-Christophe Ginefri1,2, Philippe Robert4, Luc Darrasse1,2 and Nathalie Lassau1,3

1Imagerie par Résonance Magnétique Médicale et Multi-modalités - UMR8081( IR4M), CNRS, University Paris-Sud, France

2Université Paris-Saclay, France

3Institut Gustave Roussy, France

4Experimental Imaging, MRI Unit, Research Division, Guerbet, France

*Corresponding author: Marie Poirier-Quinot, Imagerie par Résonance Magnétique Médicale et Multi-modalités - UMR8081(IR4M), CNRS, University Paris-Sud; Université Paris-Sud, Bâtiment 220, 91405 ORSAY, France, Tel: +33-1-69-15-79-65, Fax: +33-1-69-15-41-36, E-mail: marie.poirier-quinot@u-psud.fr

Received: June 26, 2017 | Accepted: October 09, 2017 | Published: October 11, 2017

Citation: Poirier-Quinot M, Leguerney I, De Rochefort L, Pitre-Champagnat S, Violas X, et al. (2017) Molecular Magnetic Resonance and Ultrasound Imaging of Tumor Angiogenesis. Int J Radiol Imaging Technol 3:027. doi.org/10.23937/2572-3235.1510027

Copyright: © Poirier-Quinot M, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Abstract


Seeking out and identifying imaging biomarkers for early cancer diagnosis and the evaluation of patient response to therapy requires an improvement in the specificity of imaging techniques. This study explores in vivo neo-angiogenesis assessment using molecular mechanisms through target molecular Magnetic Resonance (MR) and Ultrasound (US). In this context, our study examines and compares the use of both imaging technics, targeting the same integrin in a mouse xeno graft tumor model. Following xeno transplantation of human renal cell carcinoma (Human A498), thirteen nude mice were injected with ανβ3-targeted and non-targeted Contrast Agents (CA) for MR and US use, respectively. CA binding to the targeted receptor was measured through Dynamic Susceptibility Contrast MR imaging and Differential Targeted Enhancement (DTE) US imaging. The specificities and co location of both targeted CAs were studied throughout the tumor, in both hypo- and hyper-vascularized areas.

One hour postinjection, a significant difference was observed between the signals of targeted and non-targeted MR CA (p = 0.03). The DTE-US targeted CA was significantly enhanced compared to non-targeted CA (p = 0.002). In the hypo- and hyper-vascularized regions of interest, a strong correlation was observable between both modalities, with values of r10 min = 0.86 (p = 0.0003), r30 min = 0.85 (p = 0.0004) and r60 min = 0.87 (p = 0.0001).

This study highlights the specificity of each targeted CA. A high correlation was noted between MR and US molecular imaging for angiogenesis assessment. These two molecular imaging modalities may be used interchangeably to monitor patient response to anti-angiogenic treatment.

Keywords


Bimodal molecular imaging DCE-US/MRI, Ανβ3- Targeted contrast agent, USPIO nanoemulsion, US microbubbles

Abbreviations


CA: Contrast Agents; US: Ultrasound; DTE: Differential Targeted Enhancement; MR: Magnetic Resonance; SE: Standard Error; Fps: Frames per second; DSC: Dynamic Susceptibility Contrast; ROI: Region of Interest

Introduction


Molecular imaging using targeted contrast agents has been used to highlight fundamental biological mechanism for some time now, and facilitates the development of new drugs [1]. It has also proved to be a valuable tool for the early detection of molecular and cellular events, and for the characterization of molecule expression levels involved in inflammation and angiogenesis process [2-5]. The development of new contrast agents in the oncology field focuses on their specific targeting of angiogenesis and their binding to receptors/molecules such as the ανβ3 integrin, which is highly expressed on activated endothelial cells in tumor vessels [6].

Molecular Ultrasound (US) is an recent imaging approach that has rapidly found its niche among other molecular imaging modalities thanks to its high temporal resolution and ease of use [2]. Dynamic Susceptibility Contrast (DSC)-Magnetic Resonance (MR) imaging uses Ultra-Small Super Paramagnetic Iron Oxide (USPIO) Contrast Agent (CA) to provide information on tumor vascularization and hemodynamic status.

With the development of targeted agents binding to specific receptors, DSC-MR imaging can also provide molecular information in intra- and extra-vascular conditions; this has the advantage of requiring low CA concentrations making it possible to probe specific molecular events [7].

The increasing development of novel targeted therapies to treat tumors necessitates a parallel development of technologies that can determine their potential efficacy, and thus facilitate therapeutic protocol planning. Efforts are also being made to assess and quantify biomarkers of treatment response that could provide information on the location and extent of cancer, including tissue characteristics or spatial heterogeneity [2,8].

The aim of this work was to evaluate the feasibility of detection of molecular events and compare in vivo quantitative US and MR molecular imaging protocols.

The pilot study was performed on renal cell carcinoma xeno grafts in mice and was designed with two main goals in mind: 1) To evaluate the specificity of two contrast agents (MR iron oxide nanoemulsion and US microbubbles), both of which were specifically designed to target ανβ3 integrin and 2) To compare the colocalization of molecular expression of the targeted integrin obtained by specific MR and US contrast agent acquisitions, respectively (summarized in Table 1).

Table 1: Summary of experimental protocol - evaluation of MR and US CA specificity - evaluation of targeted MR and US CA colocalization. View Table 1

Materials and Methods


All experiments followed the guidelines of the European Convention for the Protection of Vertebrate Animals used for experimental and other scientific purposes, and were approved by the Animal Research Committees of the relevant laboratories, C2EA-26 and C2EA-44 (both registered at the French research ministry).

Mice and tumor model

Ten female immune deficient nude mice (6-8 weeks old) were bred and housed in the Animal Care Facility at the Institute Gustave Roussy (Villejuif, France), in accordance with institutional guidelines for animal welfare. Human A498 renal cell carcinoma (ATCC-HTB-44, American Type Culture Collection, Manassas, USA) were cultivated in EMEM (Eagle's Minimum Essential Medium, Gibco Life Technologies, Gaithersburg, MD, USA) supplemented with 10% FBS (Fetal Bovine Serum). The experiments started 30 days after 3 × 106 cells in 0.2 mL matrigel (Corning Corporated, Tewksbury, USA) were subcutaneously inoculated into the right flank of the mice.

Imaging protocol

Imaging sessions were performed using MR and US, each combined with targeted and non-targeted CA that had been injected intravenously in the systemic circulation (Figure 1). Targeted and non-targeted protocols were performed on the same day (D1) for US experiments, and systematically at a 2-day interval for MR experiments (i.e. non-targeted contrast agent injection was made on D3 or D5 and finally the targeted contrast agent injection was carried out on D3 or D5) to avoid any interaction between the MR- and US-targeted CAs.

Figure 1: Experimental (a) US; (b) MR protocols. The US protocol began with the CA injection. Ten minutes after the bolus injection, series of images were recorded for approximately 30 seconds. Using the destruction/replenishment approach, a continuous high-powered destructive pulse was then applied to destroy all microbubbles within the US beam elevation. Images were recorded while freely circulating CA replenished the tumor vessels. The MR protocol began with localization and included a repeated 3D R2*-weighted sequence for CA quantification. The R2*-weighted sequence was then performed pre-contrast (t = 0 min), and was repeated every 7 minutes until 1 hour post-administration. View Figure 1

Mice were anesthetized before each imaging session by the inhalation of isoflurane (2%) in room air (1.5 L/min). Their body temperature was monitored and maintained constant using a heated platform during US acquisitions or a constant warm air flow during MR acquisitions. Table 1 shows the number of mice used to evaluate ανβ3-targeted contrast agents and characterize their affinity to the ανβ3 sites.

Molecular MR imaging

MR imaging was performed using a clinical 1.5 T scanner (Achieva, Philips Healthcare, Best, The Netherlands) equipped with a 60 cm bore and a conventional 23 mm diameter microscopy surface coil for reception. Relaxation rate R2* measurements were made using a 3D T2*-weighted gradient-echo multi-echo sequence, selected for its sensitivity to apparent transverse relaxation effects induced by USPIO. Dynamic Susceptibility Contrast (DSC)-MR was performed repeatedly for one hour after the CA injection. R2* mapping (3D 0.5 mm isotropic sequence, TR/TE/echo spacing = 90/5.9/9.7 m sec, 6 echoes, 0.3 × 0.3 × 0.5 mm3 reconstruction voxel size, 220 Hz/pix, Tacq = 4.2 min) was carried out before and after the injection in the caudal vein of 100 µmol Fe/kg USPIO-based nanoemulsion functionalized with RGD-binding ανβ3 (P4000, referred to as E1 in patent application US 2015/0320889 A1, entitled ‘Vectorised magnetic emulsion', and filed on Nov. 12, 2015). Identical R2* mapping protocol was also carried out before and after the injection of a non-functionalized control nanoemulsion (P3999, referred to as E1T in patent application US 2015/0320889). Nanoparticle diameters were approximately 190 nm. These contrast agents are also commercialized by Chematech (France). As generally assumed in a first approximation, transverse relaxation rate R2* = 1/T2* = R2,0* + r2* [Fe] is linear with concentration, and relaxivity is r2*~210 mM-1.s-1 (patent application US 2015/0320889 A1). All images were processed with Matlab software (2011B, Math works, USA). Mean pre- and post-injection variations, or ΔR2* (R2*pre- R2*post), were calculated and monitored for 1 hour to quantify CA concentration, which directly reflects the binding to the targeted receptor.

Contrast-enhanced molecular US

All US acquisitions were performed on a dedicated system for small animal imaging (VEVO®2100, Visual Sonics, Canada), using a linear array probe with a 21 MHz center frequency (MS-250, Visual Sonics). Tumor volumes were measured using 2D B-mode imaging, as described in the literature [9]. 2D Differential Targeted Enhancement Ultrasound (DTE-US) imaging sessions were performed on the maximal transverse section of each tumor using contrast pulse sequencing technology, to reach the nonlinear signal produced by microbubbles. Images were collected at a high spatial resolution (lateral and axial resolution of 165 and 75 µm, respectively), with 4% transmission power, 5 frames per second (fps), and a dynamic range of 40-dB [9].

Micro Marker ανβ3-targeted and control (IgG) microbubbles (Visual Sonics, Toronto) with a diameter of approximately 2-3 µm were manually injected via the retro-orbital vein (50 µL per injection, injection time: 2 seconds). A 30-minute interval between the two injections allowed the first CA to be cleared from the vasculature [9]. After each CA injection, the signal intensity was recorded as a function of time during the wash-in contrast enhancement. CA targeting was then observed 10 minutes after the bolus injection in order to allow the targeted microbubbles to bind to their endothelial molecular receptors [9], and a series of images was recorded over 30 seconds. Using the destruction/replenishment approach [10], a continuous high-powered destructive pulse (100% transmit power for 1 s) was then applied to destroy all microbubbles within the US beam elevation. Images were recorded while freely circulating CA replenished the tumor vessels. Data were then analyzed using the VEVO®2100 software to quantify the DTE value (arbitrary unit) within specific Regions of Interest (ROIs), calculated by using the difference between the mean pre- and post-destruction signal intensities. DTE value is an indicator of the number of microbubbles that adhere to molecular endothelial receptors.

Evaluation of targeted MR and US contrast agent colocalization

MR data were colocalized on the US 2D acquisitions to choose the closest slice in the 3D MR-acquisition volume (R2*-weighted images), (Figure 2a). To compare DTE-US imaging to DSC-MR imaging, mean values of DTE and relaxation rates ΔR2* were determined in whole tumor ROI (ROI-1) and multiple intratumoral ROI (ROI 2 to 7) to reflect the heterogeneity of intratumoral molecular expression. ROI 2 to 5 was manually drawn to facilitate the location (Figure 2b). The two remaining ROIs (ROI 6 and 7) were determined as the two extrema of targeted contrast agent imaging, i.e. they were hypo- (ROI-6) and hyper- (ROI-7) contrast enhanced. ROIs all measured 3.14 mm2 (circle with a radius of 1 mm).

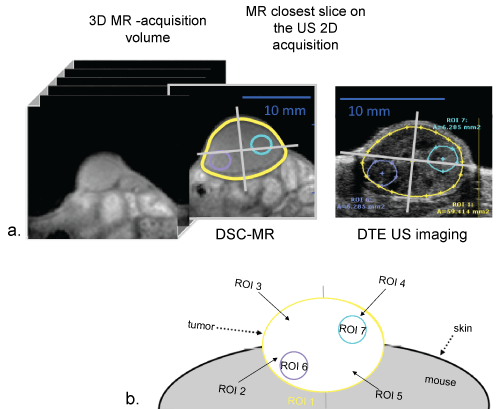

Figure 2: Schematic of data segmentation and ROI delimitation a) MR data colocalization on the US 2D acquisitions (B-mode) to choose the closest slice in the 3D MR-acquisition volume (R2*-weighted images, first echo); b) Bi-dimensional Regions of Interest (ROIs) were defined manually to delimit the whole tumor (ROI 1), ¼ of the tumor section (ROI 2 to 5), hyper- (ROI 6) and hypo- (ROI 7) vascularized areas. The last two ROIs systematically measured 3.14 mm2 (circle with a radius of 1 mm). View Figure 2

Immunofluorescence

Immediately after the last MR imaging session, all five tumors were extracted, embedded in a OCT gel-like medium consisting of polyethylene glycol and polyvinyl alcohol (Cryomatrix OCT compound, Thermo Fisher Scientific, USA), then frozen in liquid nitrogen. The tumors were cut into 7-8 µm-thick sections located as close as possible to the maximal transverse section imaged by DTE-US and DSC-MR. Sections were stained with Hematoxylin, Eosin and Saffron (HES) and observed to verify tissue integrity.

To verify the presence of β3 on the cells of the vascular endothelium of renal carcinoma, cover slips were incubated overnight at 4 ℃ with anti-human rabbit β3 (1:1000; 04-1060, Millipore) in TNB buffer as a primary antibody, then incubated for 2 h with HRP-conjugated goat anti-mouse IgG (1:1000; 111-036-047, Jackson ImmunoResearch) in TNB buffer as a secondary antibody. Given that the tumor tissue could also express the β3 integrin, β3/CD31 double labeling was carried out to demonstrate the labeling of the integrin in the vascular endothelium. CD31 was revealed using anti-mouse rat CD31 (1:50; 553370, BD Biosciences) then goat anti-rat IgG coupled to Alexa Fluor 555 (1:200; A-21434, Life Technologies). The β3 was amplified using the TSA kit (NEL749A001KT, Perkin Elmer) and revealed by FITC-Streptavidin (1:200, STAR2B, AbD Serotec). The nuclei were labeled with DAPI (Atlantic Bone Screen, France). Nuclear staining with DAPI allowed the identification of tissue structure and quality. Tissue fluorescence was observed under a multiphoton microscope (SP8, Leica). Regions of interest were photographed at a magnification of x63 through an oil immersion lens.

Statistical analysis

All continuous measurements were expressed as mean ± standard deviation. Correlations were statistically analyzed using the Pearson's correlation coefficient (r) for normally distributed data, and the Spearman rank coefficient correlation was used in the absence of normal distribution. The significance level of the correlation was determined with corresponding Pearson and Spearman tests. The ΔR2* and DTE values were not normally distributed and were therefore compared using a non-parametric Wilcox on signed-rank test. A p-value of less than 0.05 was considered statistically significant.

Results


Figure 3 shows an example of the same tumor imaged by MR (R2*-weighted scan, first echo with a Signal to Noise Ratio of 70) and DTE-US before and after the targeted CA injection. S although the signal was homogeneous before injection in both MR and US images, strong heterogeneity was observed after the injection of the CA, with signal enhancement in US sessions and an R2* increase in MR imaging indicating molecular ανβ3 expression.

Figure 3: Molecular US imaging in harmonic mode carried out a) pre-injection; b) 10 minutes postinjection of targeted microbubbles. First echo of DSC-MR imaging carried out; c) preinjection; d) 10 minutes postinjection of targeted USPIO nanoemulsion. The MR hyposignal is due to the presence of USPIO nanoemulsion, while microbubbles lead to a hypersignal on US acquisition. View Figure 3

MR and US contrast agent specificity

DTE-US measurements at the tenth minute postinjection were compared to ΔR2* measurements post-injection from 10 to 60 minutes at intervals of 7 minutes, in order to determine the optimal time at which MR imaging parameters should be compared in terms of CA binding specificity. Figure 4 shows the ΔR2* mean values (± Standard Error SE) for targeted (square) and non-targeted (diamond) CA as a function of time. ΔR2* values became significantly different between targeted and non-targeted CA for all acquisitions performed 37 minutes postinjection and later (p = 0.03), thus providing the imaging window to capture specific binding. At 1 hour postinjection, the ΔR2* value for targeted CA was 16.5 ± 3.9 s-1; significantly different to that of non-targeted CA, i.e. 5.8 ± 1.8 s-1 (p = 0.03).

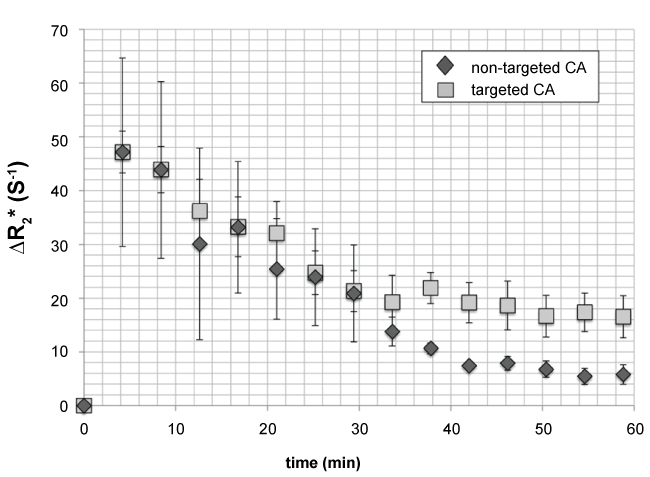

Figure 4: ΔR2* mean values (± Standard Error SE), for targeted (square) and non-targeted (diamond) CA as a function of time. ΔR2* values became significantly different between targeted and non-targeted CA for all acquisitions performed every 7 minutes between 37 and 60 minutes postinjection (p = 0.03, Wilcox on test for paired samples), thus providing the most appropriate imaging window to image specific binding. At 1 hour postinjection, ΔR2* measurement for targeted CA was 16.5 ± 3.9 s-1, significantly different from the values recorded for non-targeted CA, namely 5.8 ± 1.8 s-1 (p = 0.03, Wilcox on test for paired samples). View Figure 4

Figure 5 shows the mean (± SE) US contrast signal intensities evaluated 10 minutes after the CA injection, before and after targeted and non-targeted CA destruction. The signal did not change in the case of non-targeted CA, but a significant decrease was observed for the targeted CA (p = 0.03), indicating the binding of the specific CA. DTEnon-targeted CA values were of 260 ± 66 a.u. compared to 2601 ± 488 a.u for DTEtargeted CA, indicating significantly different contrast enhancement (p = 0.002).

Figure 5: Mean (± SE) US contrast signal intensities evaluated 10 minutes after the CA injection, before and after targeted and non-targeted CA destruction. Non-significant difference was observed in the signal for non-targeted CA, whereas a significant decrease was observed for the targeted CA (p = 0.03, Wilcox on test), indicating the binding of the specific CA. DTE values (mean ± SE), calculated as the difference between US signal intensities before and after CA destruction, were 260.5 ± 66.0 a.u. for the non-targeted CA and 2601.5 ± 488.3 a.u. for the targeted CA. Significantly different changes in contrast were observed between US targeted and non-targeted CA (p = 0.002, Wilcox on test for paired samples). View Figure 5

Molecular US and MR colocalization

The manually segmented tumor areas correlated well between the two imaging modalities (r = 0.99, p < 0.001, Figure 6), as expected. The tumor area measured using MR-imaging was 25% larger than the tumor area measured using US; this difference may be due to different manual tracing.

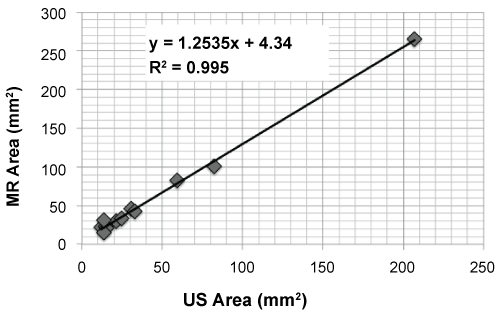

Figure 6: Tumoral size evaluation from MR and US imaging, where r = 0.99, p < 0.001 (Pearson test). The tumor area measured from MR imaging was 25% higher than that estimated using US. View Figure 6

The correlation coefficient r was evaluated for both ΔR2* and DTE values measured in all seven specific ROIs for the different post-injection times in the DSC-MR protocol. The best correlations in all the ROIs were obtained at 60 minutes postinjection, with r values of 0.52 (p = 0.0005). The mean values of ΔR2* and DTE measured for ROI 1 to 5 were not significantly correlated, even for different post-injection times (r < 0.71). The strong correlation was observed on the specific ROIs, i.e., the hypo- and hyper-vascularized areas (ROI 6 and ROI 7, Figure 7 with respectively r10min = 0.86 (p = 0.0003); r30min = 0.85 (p = 0.0004) and r60min = 0.87 (p = 0.0001).

Figure 7: a) Maximum correspondence between US and MR parameters (r = 0.875, Pearson test p < 1.10-5) was observed for the specific ROIs, i.e., the hypo- and hyper-vascularized areas (ROI 6 and ROI 7), defined in b) US and c) MR acquisitions at 60 minutes after injection. View Figure 7

Immunofluorescence

The observations acquired by optical microscopy in tissue images (Figure 8) indicated the colocalization of β3 with CD31, confirming the presence of integrin on the endothelial cells of this A498 RCC tumor model. Several integrins are involved in cancer progression but most of them, such as αvβ3, are over expressed, making them difficult to quantify [6,11,12]. We successfully evaluated colocalization using Imaris (Bit plane Scientific Software) to quantify the percentage of colocalization between the 2 CD31 and β3 markers, and found that colocalized β3/CD31 areas made up 30.6% of the vasculature area.

Figure 8: Examples of immunofluorescence merged images for β3 (green), CD31 (red), and DAPI (blue) obtained using multi photon microscopy in A498 tumor sections. Bar = 50 µm. View Figure 8

Discussion


The contrast agents, i.e. iron oxide nanoemulsion (DSC-MR) and microbubbles (DTE-US), were both functionalized to target the same integrin (ανβ3) for preclinical oncology applications, and both were shown to provide specific targeting [13]. The novelty of this work was to make a fair comparison of molecular imaging approaches seeking to identify the colocalization of angiogenesis target, using different contrast agents with different fixation mechanisms. These results highlight the reliability of molecular imaging for angiogenesis.

An entire analysis protocol was specifically developed here to colocalize the US 2D acquisition to the closest slice in the 3D MR-acquisition volume. This protocol was combined with a systematic segmentation of the different tumor areas where ΔR2* and DTE were calculated. In this way, we ensured the closest and thus fairest possible comparison between MR and US results, enabling region-based comparison among imaging modalities.

First, the comparison of these specific contrast agents with the non-targeted contrast agents within each imaging session yielded significant differences (MR - Figure 4, US - Figure 5). The dynamic contrast provided by MR imaging allowed the evaluation to take place over a sufficiently long time scale to observe the CA kinetic, which was not the case for US acquisitions. US experiments gave access to measurement of the quantity of targeted microbubbles at only one time point, i.e. 10 minutes postinjection, as recommended by Van Rookie, et al. [14]. The optimal window to perform MR imaging was assessed (Figure 4), and the targeted MR signal became significantly different from the non-targeted one after 37 minutes. The MR CA injected for this study had larger diameters and stronger relaxivity than those commonly used, and appears to be a promising tool for molecular imaging. These molecular MR CAs, based on nano-objects and containing a high payload of contrast-generating metals (USPIO in this study), are now sensitive enough for use in target-specific imaging. In light of the sensitivity (r2*~210 mM-1.s-1) and the observed average specific ΔR2* (close to 10 s-1) recorded, we can consider that approximately 50 µM concentration of iron (or a 50 pM concentration of droplets) was measurable, which is within the range of receptor concentrations.

Secondly, a good correlation was observed between specific targeted MR and US signal, with a high correlation coefficient of 0.87 at 60 minutes after injection Figure 7.

The results highlighted the high colocalization of MR and US targeted contrast agents in vivo, despite differences in their respective sizes (190 nm vs. 2-3 µm diameters) and fixation mechanisms. MR nanoemulsion was targeted with RGD, while US CA was targeted with antibodies. Thus, the high colocalization observed in this study demonstrated the reliability of molecular imaging, whatever imaging modalities, MR or US. However, simultaneous imaging by both modalities does not provide any evidence that could explain the fundamental biological fixation mechanism. In particular, the different CA sizes led us to expect the observation of some integrins expressed exclusively on activated endothelial cells from vessels with the DTE-US, and integrins expressed on tumor cells after extravasation of the MR AC. These differences in CA behavior might explain observations made in other ROIs.

The localization of β3 was assessed and confirmed by immunofluorescence within the vessels and within the extracellular matrix. The difficulty of implementing integrin labelling and observation makes it impossible to study slices thicker than 20 to 30 µm, which would allow a more robust observation and possible quantification within the vessels. Nevertheless, the multi-staining DAPI/CD31/β3 was optimized to allow high quality visualization.

Finally, our study highlights the equivalence of molecular DTE-US and DSC-MR imaging in terms of specificity and CA localization. This approach has already allowed the prediction of response to targeted therapies by the use of MR and US imaging to evaluate the early response of different therapeutic agents in renal cell carcinoma [15]. Some studies suggested that RGD peptide could not necessarily reflect the change of integrin ανβ3 expression on neoangiogenesis detection [16,17]. Consequently, the real potential of RGD peptide in therapy response monitoring needs to be confirmed with well-designed clinical investigations Beyond this limit of targeted-CAs specificity, the main benefits of the molecular US approach are its accessibility and low cost. Limitations linked to operator dependency can often be overcome with practice. The evaluation of early response to treatment could be achieved by improving methods for the detection and evaluation of tumors and identifying the expression levels of cell surface receptor such as integrins, thus permitting doctors to select the most efficient type of treatment for each case. Combining this early response to treatment with an accessible imaging technique such as molecular US would be a major gain for personalized care.
