Adolescent Idiopathic Torticollis: Morphological Vertebral Changes of the Spinal Canal and the Spinal Cord Position: A Case Report

Pedro Gutiérrez Carbonell and Ruiz Miñana E

Department of Orthopedic Surgery and Traumatology, General University Alicante Hospital, Spain

*Corresponding author: Pedro Gutiérrez Carbonell, Department of Orthopedic Surgery and Traumatology, General University Alicante Hospital, Paraje Ledua E- 25, 03660-Novelda, Spain, Tel: 00-34-606-468-139, E-mail: gutierrez_ped@gva.es

Received: July 30, 2017 | Accepted: November 09, 2017 | Published: November 11, 2017

Citation: Carbonell PG, Ruiz ME (2017) Adolescent Idiopathic Torticollis: Morphological Vertebral Changes of the Spinal Canal and the Spinal Cord Position: A Case Report. Trauma Cases Rev 3:056. doi.org/10.23937/2469-5777/1510056

Copyright: © 2017 Carbonell PG, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Abstract


Cervical spinal canal deformities can be caused by muscular deforming forces, as in the case of a 10-year-old male with inveterate left torticollis. Atlas and axis bone deformities were observed, including subluxation of the odontoid apophysis, hypertrophy of the anterior arch of the atlas, hypoplasia of the posterior arches of atlas, and deformation of the spinal canal accompanied by an eccentric position of the spinal cord. After tenotomy of Sternocleidomastoid Muscle (SCM) and 5-years of follow-up, the deformities were unchanged. Idiopathic scoliosis, is a 3D deformity, and has similar pattern spinal deformities: Thinning, asymmetry of the pedicles and vertebral laminae and spinal cord displacement toward the concavity of the scoliosis. Persistent muscular deforming forces on the neurocentral cartilage can be sources of structural deformity in vertebral and cervical deformities.

Keywords


Idiopathic congenital torticollis, CT vertebral study, MR-scanning cervical, Morphological vertebral changes, Anomalous spinal cord position

Introduction


Torticollis is a sign and symptom, not a diagnosis; it requires the formulation of a wide differential diagnosis. In this differential diagnosis are consulted: neurosurgeon, pediatric neurologist, oculist and radiologist. In this case report we have applied algorithm, published in literature [1]. The most common type of torticollis is childhood congenital muscular torticollis. Less common are those types associated with congenital anomalies of the cervical spine (Klippel-Feil Syndrome), gastroesophageal reflux disease (Sandifer Syndrome), traumatic or oropharyngeal inflammation (Grisel's Syndrome), anomalies of the brain stem and cervical spine (syringomyelia, diastematomyelia and Arnold-Chiari malformation) or tumors of the posterior cranial fossa (astrocytoma and ependymoma) [1-5]. After this wide differential diagnosis was made, orthopedic and occasionally surgical treatment of torticollis with muscular etiology is performed, preferably, within the first year of life, because after this age facial deformities are irreversible. It is unusual for torticollis not to be resolved by the teenage years, but this patient, are an immigrant person without previous treatment. We report a clinical case of idiopathic torticollis with vertebral bone deformities of the cervical spinal canal and deformities in the spinal cord position relative to the canal, which were irreversible despite tenotomy of the Sternocleidomastoid Muscle (SCM). The deformities observed in this patient with torticollis have not been described previously in the literature.

Case Report


This patient study was approved by the Ethics Committee and was conducted following completion of the corresponding informed consent. A 10-year-old male patient in 2008 had consulted for a torticollis deformity that had originated during early childhood. This delay in first diagnosis is because patient is inmigrant and without diagnosis or previous treatment. Patient had classical deformities of torticollis: Shortening of SCM muscle, lateral inclination of the neck, smaller and higher eye, contralateral torsion with chin rising. Moreover, the patient also presented with a left-side facial deformity. The patient was not referred for any traumatic or infectious etiology of the oropharynx or for digestive or renal diseases. It was made a wide differential diagnosis, especially for to exclude nonmuscular causes of torticollis, presents in 18% of patients [1], Klippel-Feil anomalies (30%), posterior fossa tumors, syringomyelia or Arnold-Chiari malformation (51%) [1,2]. Additionally, neurologic exploration was done by a pediatric neurologist. Problems like dystonia, ataxia or abnormal deep tendon reflexes in upper and lower limbs did not exist. Also, osteocongenital neurological pathologies of the spinal cord and brain tumor were excluded by a pediatric neurologist. After these exclusions were made, we confirmed a diagnosis of inveterate congenital muscular torticollis. Preoperative studies, radiographic imaging, Computed Axial Tomography (CT) scans and Magnetic Resonance Imaging (MRI) of the cervical spine and skull (Figure1a, Figure 1b, Figure 2a, Figure 2b, Figure 3a, Figure 3b, Figure 4a, Figure 4b) highlighted Klippel-Feil Syndrome, fusion defects of the vertebral arches of the atlas, diastematomyelia and hypoplasia of the occipital condyles. CT images demonstrated, deformity of the anterior arch of the atlas was observed, consisting of hypoplasia of the right half and deformity and hypoplasia of the posterior arches C1 and C2 with concavity of the right posterior hemi-arch and convexity of the left arch, causing asymmetry of the spinal canal. Additionally, subluxation of the odontoid apophysis toward a right lateral mass of the atlas was observed (Figure 2a, Figure 3a). MRI showed deformity with extreme narrowing of the odontoid apophysis and irregular formation of the spinal canal with displacement of the spinal cord in the direction of the concavity of the torticollis (Figure 4a, Figure 4b). In 2009, unipolar distal tenotomy of the left SCM was performed, followed by orthotics and rehabilitation with notable improvement in cervical mobility but with minimal effect on facial asymmetry. In the 5-year postoperative CT and MRI, there were no significant changes in preoperative vertebral bone deformities, either visually or through the morphology of the spinal canal (Figure 5a, Figure 5b, and Figure 6).

Discussion


Torticollis requires the differential diagnosis of congenital pathologies syndromes (such as Klippel-Feil, Down, Marfan, and Morquio syndromes and diastematomyelia), infectious diseases (Grisel's Syndrome and mastoiditis), inflammatory conditions (rheumatoid juvenile arthritis), gastroesophageal syndromes (Salinger Syndrome) and tumors (osteoblastoma, osteoid osteoma, posterior fossa astrocytoma, etc.) as well as excluding trauma to the occipito-alto-odontoid hinge [1,2,4,5]. In the adolescent case upon which we report, all were excluded based on confirming infantile inveterate muscular torticollis by clinical history. The spine development depends of somites. This embryonyc structures develop segmentally vertebrae. Failure of this segmental horizontal develop may be mechanism that leads to congenital scoliosis [6]. At the age of 5-6 years, fusion of the anterior arches of the atlas and of the odontoid apophysis of the axis had occurred [7,8]. Atlas and axis has, both, two neurocentral synchondoses. Mechanical forces influencing in this neurocentral synchondoses, can cause abnormal and asymmetric develop in neurocentral synchondoses or in periosteal sleeve of posterior vertebrae elements [6]. The patient was diagnosed and treated by us at age 9. The CT and MRI showed deformities that were associated with torticollis; these deformities have not been described previously in the literature but are similar to those that occur in scoliosis in vertebrae (pedicles and posterior arches) and in the asymmetrical position of the spinal cord in the spinal canal. These deformities in scoliosis were attributed to the sustained action of deforming forces, especially shear stress forces, on the neurocentral synchondroses in other regions of the column [9]. In recent years, have been published manuscripts about vertebral wedging deformity, especially, in frontal plane and pedicle and posterior elements changes [10-12]. Other authors, have published about characteristic and important 3D vertebrae deformity pattern in scoliosis, with the objective to know better the deformities and to be able to improve the surgery in scoliotic spine [13-17]. At 5 years, tenotomy of the SCM showed no indication of significant changes in preoperative deformities, including facial asymmetry [18]. We could propose two hypotheses: a) The persistent muscular deforming forces, from postnatal age, originated from bone and proximal cervical spinal canal deformities and b) Rotating deforming forces also acted on the cervical spine, similar to what occurs in scoliosis, a finding that extends to the rest of the spinal column [18,19]. For readers, limitation of hypotheses is evident, because is a case report, but persistent mechanical shear stress forces in a torticollis, could be a possible cause of damage on neurocentral synchondroses and develop 3D scoliosis vertebrae deformities.

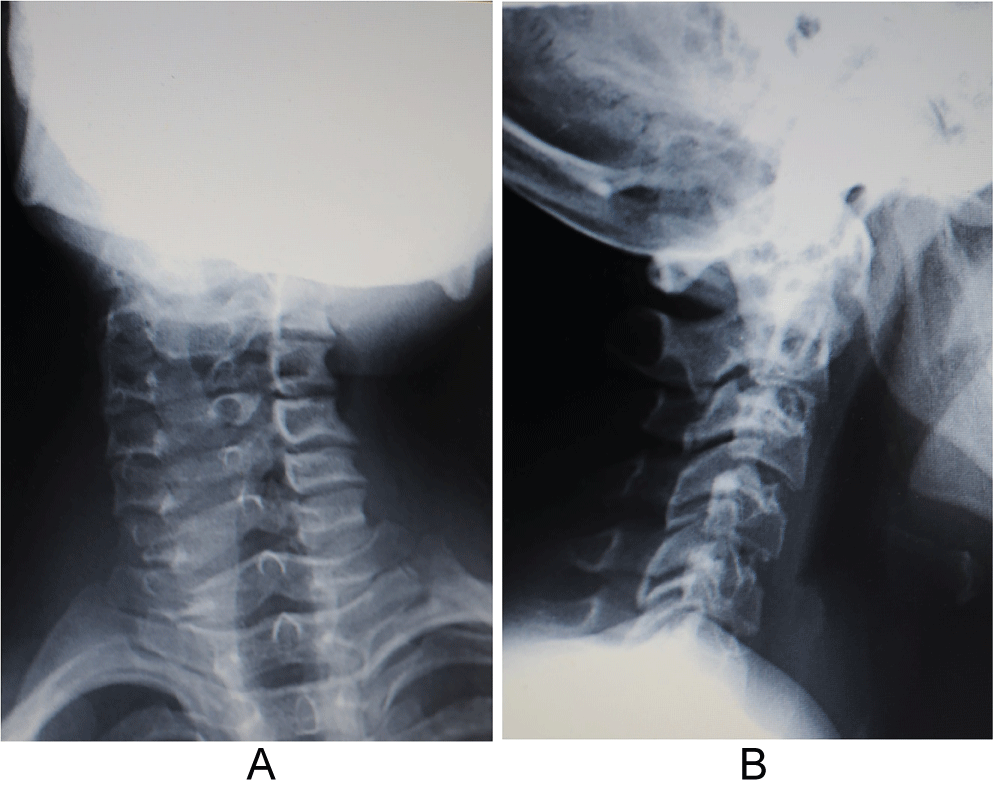

Figure 1: Radiographs of the a) Anteroposterior; b) Lateral cervical spine. No anomalies of segmentation or rachischisis of the vertebral arches were observed. View Figure 1

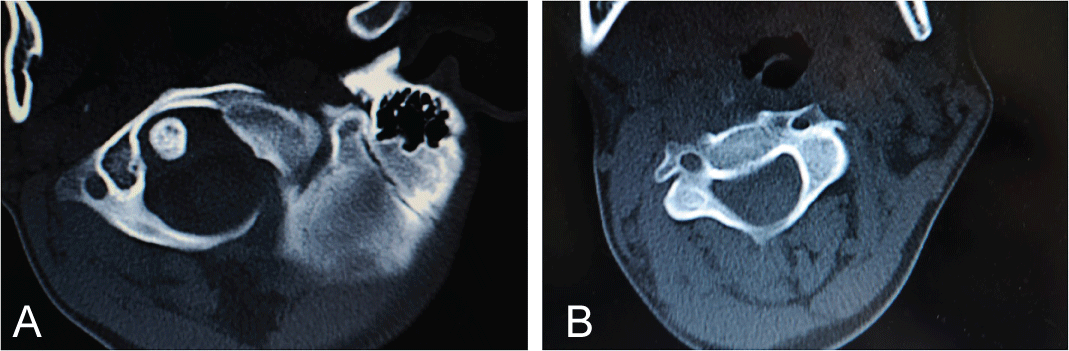

Figure 2: CT: a) Odontoid apophysis asymmetry and right anterior vertebral hemi-arch hypoplasia; b) Spinal canal asymmetry of vertebral posterior arches: Flattening on the right side and convexity on the left. View Figure 2

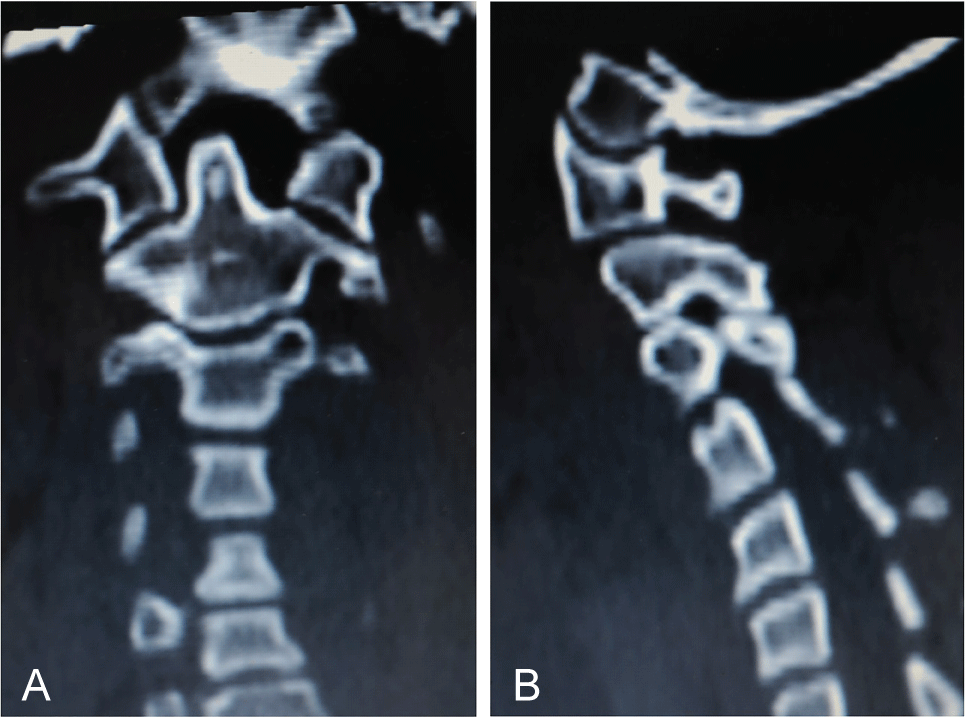

Figure 3: 2D CT: a) A coronal plane search found odontoid apophysis symmetry regarding lateral masses of the atlas; b) A sagittal plane search found an occipital condyle of normal morphology. View Figure 3

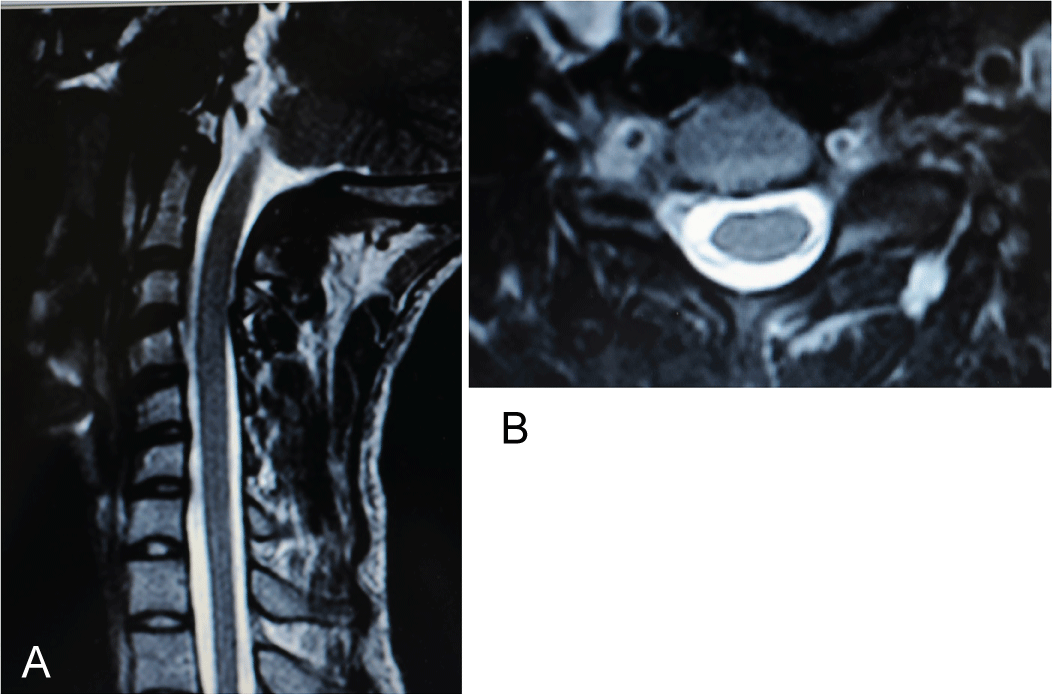

Figure 4: MR-scanning: a) Sagittal plane: A normal spinal cord in the cervical spinal canal; b) Axial plane: Spinal canal asymmetry was marked by a displaced spinal cord to the left (i.e., toward the concavity of the torticollis). View Figure 4

Figure 5: a) Postoperative CT (5 years follow-up); b) Persistent abnormal positions of odontoid apophysis and asymmetry of the posterior vertebral arches and cervical spinal canal. View Figure 5

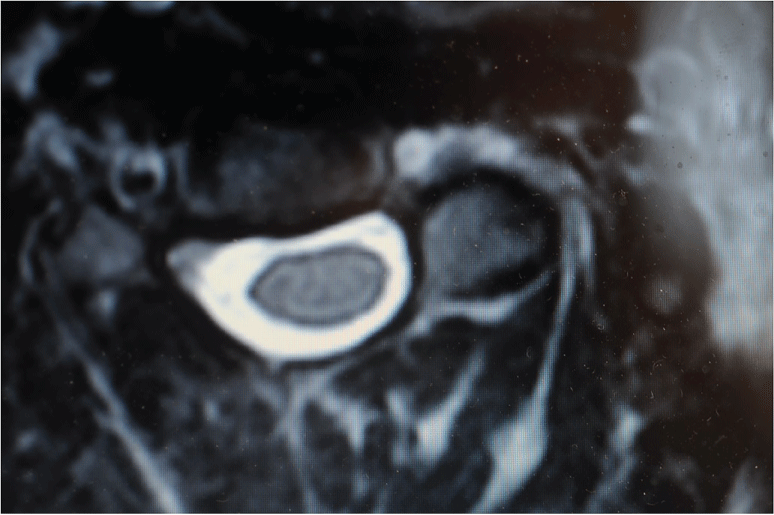

Figure 6: Postoperative MR-scanning (5 years) remained unchanged: Spinal canal deformity and the asymmetric position of the spinal cord towards the concavity of the torticollis are noted. View Figure 6

Conflict of Interest


No conflict of interest.
