Low frequency current, Thermodynamics, Label free biomarker, Theronostics, Tumor, The tumor microenvironment

Introduction

Cancer is a disease characterized by an abnormal and uncontrolled division of cells that could also have invasive properties. It involves undiminished cellular proliferative potential, loss of differentiation, angiogenesis, metastasis and invasion. The proliferating cells interact constantly with their surrounding stromal microenvironment [1]. Mathematically, a continuous time deterministic multi-event theoretical model can explain such a phenomenon of birth, death and mutation over a period of time. It basically describes the mean behavior of the evolutionary process where all the three events take place at every point in time with a predictable outcome [2]. In this context, Rashevsky-Turing theory is also important, which puts forth a basic question of morphogenesis. The theory questions about movement of cell aggregates from an unstable state to a well defined asymptotically stable state and vice-versa. However, entropy relates to the independence of the tumor cell and the switch in its physiology, i.e., from subservience to the organism to its own independent Darwinian evolution [3,4]. Any perturbation in demand and supply balance of substrates and energy (oxygen, nutrient, co-factors, electro-magnetic field) leads to an unsteady state. This scenario is time-dependent which may either revert back to a normal steady state (reversible) or grow exponentially to initiate the process of cancer or undifferentiated uncontrolled growth (irreversible) upto a limit of asymptotic state. The process acts through altered pathways of DNA synthesis, DNA damage and repair mechanism and cell death that are more evident in dividing cells [3-15]. A recent animal model-based study by our group highlighted tumor growth and progression to be significantly affected by the altered physical (Hyper-Baric Oxygenation (HBO)) stress, thereby causing perturbation in the tumor microenvironment [16,17]. Similar findings were also observed in one of the clinical study [6]. In biophysical or bioelectrical terms, normal proliferating cells and cancer cells behave quite differently with respect to depolarization, suggesting that it is more positive inside the cytoplasm of a cancer cell compared to a normal cell. The dividing cancer cells have higher resting potential across cell membrane (-15 mV) compared to trans-membrane resting potential (-70 to-100 mV) of a normal cell [18]. Interestingly, the transmembrane potential of a normal repairing cell returns to normal resting polarized state following repair process, but a cancer cell continues to maintain a higher transmembrane potential. Different cells have different ions and biomolecules; even the environment within the cytoplasm is jelly-like, with water acting as a sluggish fluid medium [19] whereas in cancer cells, this water becomes more mobile [20].

The dielectric properties of cells are also frequency dependent [21] e.g., α-dispersion occurred at a few kHz and with increasing frequency, extra dispersions occur at a frequency ranging from tens of kHz to tens of mHz. This is referred to as the β-dispersion [22]. These dielectric dispersions indicate that the polarization process in the cells is mediated by different mechanisms and that one mechanism is lost at a specific range of frequencies. Both the dispersions at low frequencies are mainly caused by the structure of the cell, more specifically the cell membranes and the free ions within and outside the cell [23]. Cell capacitance also showed an exponential decaying behavior versus frequency, that is as the frequency is increased, the capacitance gets decreased rapidly or impedance increased and vice-versa. The cancer cell is known to exhibit lower capacitance value compared to normal cells of different tissue origin [23]. An important implication of this finding is that even at Direct Current (DC) voltages (as well as frequencies up to 1 mHz) manipulation of the field strength in the cell membrane can be achieved [24]. When an electromagnetic field (DC/low frequency AC current) is applied to the cell (circuit) or cellular resistive components, lattice heat will develop due to the loss of kinetic energy by the accelerated electrons due to collision with the atoms. This is nothing but the resistance (impedance) that corresponds to an increase in lattice heat, which is irretrievable. By Joule's law, we can see that the heat energy dissipated by current (I) flowing through a resistor of resistance R is H = I^2*R. This energy in the crystal lattice (tissue) induces thermal movement of electrons that will be in a random direction. This randomness can be defined as entropy. The change in entropy is denoted by dS = dQ/T, where dQ is the change in heat energy between two time intervals and T is the final temperature. Thus, by applying an external electromagnetic field (DC/Low frequency), we can further increase in the entropy of the system. Laws governing thermodynamics state that there exist two energy states and entropy between two closely inter-dependent systems. Entropy is a measure of randomness resulting from the increase in heat energy supplied to a system. Cancer initiating processes follows the second law of thermodynamics where energy/heat flows towards the disturbed area (cancer entropy) to supply much needed energy. This continues until the required demand is met through aerobic pyruvic acid metabolic pathway and subsequently by aerobic glycolysis (Warburg hypothesis), whereby a new threshold of steady state or a higher state of entropy is reached.

Consequently, when the normal energy equilibrium (cell charge/dielectric property) is disturbed, many exogenous (e.g., electromagnetic field, oxygen, nutrients) and endogenous factors may potentiate mutagenic effect on cells during cell division phase. Hyperthermia Therapy (HT) for longer duration may lead to Vascular Endothelial Growth Factor (VEGF) and Hypoxia Inducible Factor (HIF-1) up-regulation, thereby creating onco-thermia (reversible or irreversible energy state transformation) with low voltage low dose electrical current, via joule effect can be a better and safer modality [16,17]. DC electric field is also known to cause tissue repair (electric field polarizes charged cell surface molecules). At extremely low frequencies, electric field stimulates excitable tissues through membrane depolarization, stimulates bone growth and accelerates fracture healing [25]. As the electric field frequency increases, the stimulatory effect disappears, ending in the so-called thermal effect, when tissue heating becomes a dominant event [26]. Tumor Treating fields (TT Fields) is a noninvasive, regional antimitotic treatment modality that has been approved for the treatment of recurrent glioblastoma by the U.S. FDA and has a CE mark in Europe. TT Fields therapy delivers low-intensity (1-3 V/cm), intermediate-frequency (100-300 kHz), alternating electric fields to the tumor using transducer arrays placed on the skin around the region of the body containing the tumor [27]. Low Dose Alternating Electric Current (LDAEC) demonstrates efficacy against C4-2B and LuCaP35 xenograft while causing no harm to nerves and blood vessels. These results warrant further investigations into the use of LDAEC as a treatment for CaP [28]. This study hypothesizes that the successes of studies of Direct Current (DC) against cancer tumors is due to the fact that DC inhibits the ribonucleotide reductase enzyme, which is necessary for cancer cell growth [29].

In this context, it is important to discuss the recent in vivo studies on the effects of non-thermal irreversible electrolytic electroporation (E2) in cancer therapeutics under different experimental conditions. It involves giving short and high voltage direct current pulses to the tumor, unlike in our study where we have utilized low frequency AC current. Klien, et al. showed that cell killing efficiency actually depended upon a combination of factors such as electrolysis, reversible electroporation and additional thermal effects [30,31]. The process of electroporation has been shown to induce cell death and cell regeneration through inflammatory immuno-modulatory response, pyroptosis, necroptosis and programed necrosis [32,33]. Irreversible electroporation has also been utilized in advanced cancers as an ablation therapy tool with some survival benefits but tissue heterogeneity, persistence of viable malignancy and epigenetic modifications/genotoxicity continue to challenge the scientific community. The recurrence rate will remain high unless cell-specific safe and optimal doses are titrated and applied to specific cells/tissue types according to the size of the tumor under electroporation. Concurrently, one needs to examine its thermal effects on the tissue, which is a subject of controversy, also patient selection and size, type and grade of the tumor [34,35]. Therefore, on the basis of all the existing knowledge, it can safely be assumed that different cells and tissues exhibit different thermodynamic, electromagnetic and electrical properties. The electromagnetic forces and heat generated by the living cells and tissues also plays a significant role in cell proliferation and function [5,18,36]. Studies on the biophysical and molecular behavior in response to low frequency electrical current may open up the possibility to develop a label free diagnostic biosensor for cancer screening as well as an onco-thermia based treatment modality.

In this study, the experiments designed were based upon the hypothesis that there exist two energy states and an ionic balance between two closely inter-dependent systems, acting in a synchronous manner. Any disturbance or perturbation might trigger the process of an abnormal proliferation of endothelial cells and adjoining mutant cells by gaining or losing resting potential and heat energy (entropy). The reversal of the process of entropy flow by low frequency electrical current may either enhance the process of apoptosis leading to tumor regression or it may also induce a state of dormancy. A characterization of the electrical response of a cell cluster and tissues i.e., the effect may be performed of electric stress on normal and cancer cells and tissues by measuring their impedance (resistance) values using simple four needle electrode system. For therapeutic purpose, we estimated and determined the value/range of low frequency current (external electromagnetic field) that can induce ionic disruption in the cell membrane and cause entropy rise capable of causing permanent cellular injury/cell deaths specifically in cancer cells without having any genotoxicity or epigenetic effects. The DNA damage, cell lysis or deaths and other epigenetic and surface protein changes triggered by the electrical energy were also studied.

Materials and Methods

In vitro/ex vivo mammary tumor model

Experiments and model generation were carried out in Laboratory Animal Facility (LAF) at ACTREC in strict accordance with the recommendations of the Committee for the Purpose of Control and Supervision of Experiments on Animals (CPCSEA), Ministry of Environment and Forests, Govt. of India. The protocol was approved by the Institutional Animal Ethics Committee (IAEC) of Tata Memorial Centre-Advanced Center for Treatment Research and Education in Cancer (Proposal No. 10/2012 dated, 12-08-2012). All efforts were made to minimize suffering during the study. An inbred C3H strain with agouti coat color was used for this study. Genetically identical six to eight-week-old inbred C3H (Agouti) female mice were housed in cages with access to food and water ad libitum and exposed to 12-hour light dark cycle. The breeding system adopted in our animal facility was 1:1 brother sister mating till 20 generation to achieve isogenicity. The isogenicity has been further verified by the animal house facility with biochemical markers (Hbb, Car-2, Idh, Mod), skin grafting and molecular markers (microsatellite) apart from regular health monitoring. Mammary tumors were induced using 0.1 ml subcutaneous injection of cell suspension (20 million cells/ml) in mouse mammary fat pad. A tumor cell suspension was prepared from aseptically excised spontaneous mammary tumor. Daily inspection of the induced mice was done for food, water, bedding, comfort and appearance of the tumor nodule under all aseptic precaution by the same research fellow to minimize the error and reduce inter personal variation. The tumor measurements were noted from the day the nodule was palpated. The mice were subjected to experimental intervention from the time. The nodule size measured between 5-10 mm in diameter. Macroscopic tumors were evident by day 60 (median value/mean value) following tumor induction-latent period. Mammary tumor from small mice was excised (one group immediately after sacrifice to simulate ex-vivo condition and the second group within one hour of natural death (in vitro condition). The tumor was cut into four parts - first small part was put under experimentation immediately and then freeze dried for molecular study; the second part was immediately freeze dried, one part of which was subsequently made into sections of equal size using cryostat-microtome for further experimentation with low frequency currents (thawed at room temperature) and then again freeze dried and kept for bio-molecular studies. The third freshly excised part was kept as control for morphological and bio-molecular studies, the fourth part was freeze dried immediate but later thawed later at room temperature was kept as control for molecular study (re-freeze dried).

In vitro Phantom models

i. Cell suspension

ii. Microsphere

Cell suspension preparation

(a) Freshly prepared tumor and normal tissue samples from freshly sacrificed animals were snap frozen and put in PBS in order to prepare cell suspensions. 50-70 mg piece of the tissue was aseptically collected in a sterile micro-centrifuge tube. Digestion of the tissue piece was performed in 300 μl digestion buffer containing 18 μl of proteinase K (20 mg/ml in 1X TE buffer) at 50 °C in a roller mixer incubator for 5-6 hours. This was followed by centrifugation at 200 × g for 10 minutes at room temperature. Pellet was collected and re-suspended in Phosphate Buffered Saline (PBS).

(b) Cell suspension from fixed tissue or tissue ribbon - Paraffin embedded tissues collected from the mice was made in to ribbon slices of 5 μm size using microtome. The tissue ribbon was taken in a micro-centrifuge tube, 1 ml of xylene was added and incubated for 10-15 minutes. It was then centrifuged at 300 × g at room temperature for 10 minutes. 1-2 ml of absolute alcohol was added to the pellet to remove the xylene and incubated for 10-15 minutes followed by centrifugation at 300 × g at room temperature for 10 minutes. Another wash of 70% alcohol was given to the pellet to remove the xylene content completely, followed by washing with distilled water to remove the alcohol content completely. 2 ml of 0.1% trypsin was added to the pellet and kept it on the sand bath overnight. Next day, the sample was centrifuged at 300 × g at room temperature for 10 minutes. The pellet was collected and re-suspended in pellet in TBS.

Microsphere phantom model

This model was developed to reproduce biological cells in morphology and function as closely as possible. Small spherical particles with diameter in the micron range are here used as simulating phantom for the cell. 50 ml of 70% ethanol was mixed well with equal volume of Dichloromethane (1:1 ratio). This was added dropwise to 100 ml Sodium Dodecyl Sulphate (SDS) and centrifuged at 200 × g at room temperature. After the preparation, a drop was put on a slide and mounted for the digital imaging using confocal microscope. Size measurement was done using LSM image software.

Bio-impedance measurement

The experimental model developed for this study was based upon our previous studies on electrical impedance tomography and tumour microenvironment modulation [37-39]. The entire experiment was divided into 2 sets- a) Experimental group-whereby microsphere, cell suspensions, mammary tumor and normal tissue samples were exposed to current of different frequencies and b) Control group- where tissues were not exposed to current. Tissues were taken i) Post-natural death (< 1 hours - in vitro; advanced stage of cancer) and ii) Post sacrifice for the mice (fresh samples - ex vivo-advanced stage but not terminal).

Heat effects for a reversible reaction (Q)

These values were calculated by the formula = TΔS where, ΔS is the entropy change of this reaction and T temperature in Kelvin. It is difficult to measure the entropy if the steady state reached by the cancer cell (tissue-microenvironment) is disturbed. We expected to raise the surrounding tissue temp to 40 degree by low frequency current assuming that the transformation is reversible for surrounding normal cells at a lower frequency.

Directly Applied Low Frequency AC (LFAC) current

Low frequency AC sinusoidal current of constant amplitude generated by the sine wave oscillator (1-5 mA and frequency of 100 Hz) was passed through the tissue soaked in buffer (post death (< 1 hour - in vitro) and sacrificed-ex vivo (fresh) with the help of two needle current electrodes placed directly on the tissue. Voltage signal developed along the current path was recorded with the help of another two needle or sensing electrodes.

Indirect Applied Low frequency AC (LFAC) Current (at 100 Hz, 1 kHz)

Electrodes were placed on the electrolyte solution (electrode-electrolyte layer) in a chamber where a tissue was placed. It raised the temperature of the solution by creating heating effect. The following steps were followed for this protocol- (a) Needle electrode was placed directly on the tissue (direct low frequency AC current) or placed in the electrolyte solution (saline/KCl buffer holding the tissue) creating tissue electrical field. Frequency dampening was seen due to R of the electrolyte medium that is saline/Brine solution.

(b) Impedance meter consisting of the chamber (where the samples were submerged) comprises of four electrodes being used to measure the impedance. Out of four electrodes, a pair of electrode was connected to signal generator of the Dr. DAQ and remaining pair of electrode perpendicular to the initial pair was connected to the resistance port of the Dr. DAQ. Dr. DAQ was in turn connected to the computer. The source of electric current was from ADC card (O-OSCILLOSCOPE) and Dr. DAQ. By using associated Pico scope software, different frequencies of current (maximum 20 kHz) were passed. Output (R) was monitored by Pico-scope. We measured impedance as ECIT- Electrical Imp Tomography or spectroscopy to provide time dependent information.

Experimental design to find the safe current limit (optimization experiments)

We conducted a series of experiments at the frequency of 100-500 Hz, 1 kHz, 2-10, 10-20 mHz (1-6 mV; 0.5-3 mA) for microsphere (for 1-15 min duration). At higher frequency (10-20 mHz) and duration (10-15 min), microsphere ruptured within 15 min and huge entropy and heat energy generated/produced.

Optimal limit

We calculated optimal frequency and time for creating onco-thermia and cell lysis in cell suspension and tissues and found the frequency of 100 Hz (1-6 mV; 500 μA or 0.5 mA) to a maximum frequency of 1 kHz (at 500 μA) given for 1 minute to be optimal where cell membrane remained intact without disruption and lysis and beyond 3 minutes, we observed fall in the impedance, cell disruption and death.

Methodology of protein extraction and assay

Levels of HSP90, beta-actin and histone proteins γH2AX, H3, H3K9ac was evaluated by western blotting. HSP90 stands for Heat Shock Protein 90 that is a cellular protein involved in stabilizing other proteins during heat stress. This particular protein was chosen for analysis considering the heat generated during the experimental setup. Gamma H2AX defines a post-translationally modified form of histone variant H2AX that depicts genomic instability. H3K9ac is a post-translationally modified form of histone H3, acetylated at Lysine 9 position. This particular PTM was chosen to analyse any global changes in the chromatin architecture since acetylated H3K9 is associated with active transcription and de-condensed form of chromatin. Briefly, the tumor tissues subjected to biophysical experiments (100Hz and 1kHz) and the tissues not subjected to low frequency current (Control) were stored at -80 °C. Tissues (100 mg) and controls were also taken from the tissues at room temperature (recently sacrificed within an hour). The tissue samples were lysed by crushing in liquid nitrogen (fine powdered) followed by homogenization at 4 °C in 2 ml lysis buffer (20 mM Tris-HCl pH8, 2 mM EDTA pH 8, 1 mM Sodium Orthovanadate, 20 mM β-glycophosphate, 1 mM NaF, 1 mM PMSF, 1 mM DTT 10 mM EGTA, 0.1% Triton-X100, 5 mM MgCl₂ and a protease inhibitor 10 µg/ml Leupeptin) and incubated for 30 minutes on ice. The resultant cell extract was centrifuged for 20 min at 15,000g, after which the supernatant (total cell lysate) was collected. From pellet, histone proteins were extracted with 0.2 M H₂SO₄. The Total Cell Lysate (TCL) and histone proteins were boiled in Laemmli sample buffer and subjected to 10% and 18% polyacrylamide gel electrophoresis respectively. The separated proteins were transferred to a Poly Vinylidene Di-Fluoride (PVDF) membrane (Millipore, Bedford, MA, USA) and blocked for 1 hour with 5% Bovine Serum Albumin (BSA) in Tris-Buffered Saline (TBS) containing 0.1% Tween 20 for H3, 1% BSA in 0.1% TBST for γH2AX and H3K9Ac. 5% milk in 0.1% TBST was used for HSP90 and beta-actin. After blocking membranes were probed using mouse anti-H3 antibody (1:1000 dilution in 1% BSA-TBST), anti-H2AX antibody (1:4000 dilution in 1% BSA-TBST), anti-beta actin antibody (1:10000 dilution in 1% BSA-TBST), Anti HSP90 antibody (1:1000 dilution in 1% BSA TBST) and anti H3K9Ac antibody (1:1000 dilution in 1% BSA TBST) overnight at 4 °C. After three washes with 0.1% Tween 20-TBS, the blots were incubated for 1 hour with Horse-Radish Peroxidase (HRP) conjugated anti-rabbit IgG (1:8000 dilution in 5% BSA TBST) or anti-mouse IgG (1:5000 dilution in 5% BSA TBST), again washed three times with 0.1% Tween 20-TBS, visualized with Femto Enhanced Chemi-Luminescence (ECL) (Thermo Scientific) and exposed to X-ray film, which was developed using an automatic processor. The results were normalized to the baseline optical densities obtained with untreated cells.

Results

Bio-impedance of cells and tissues

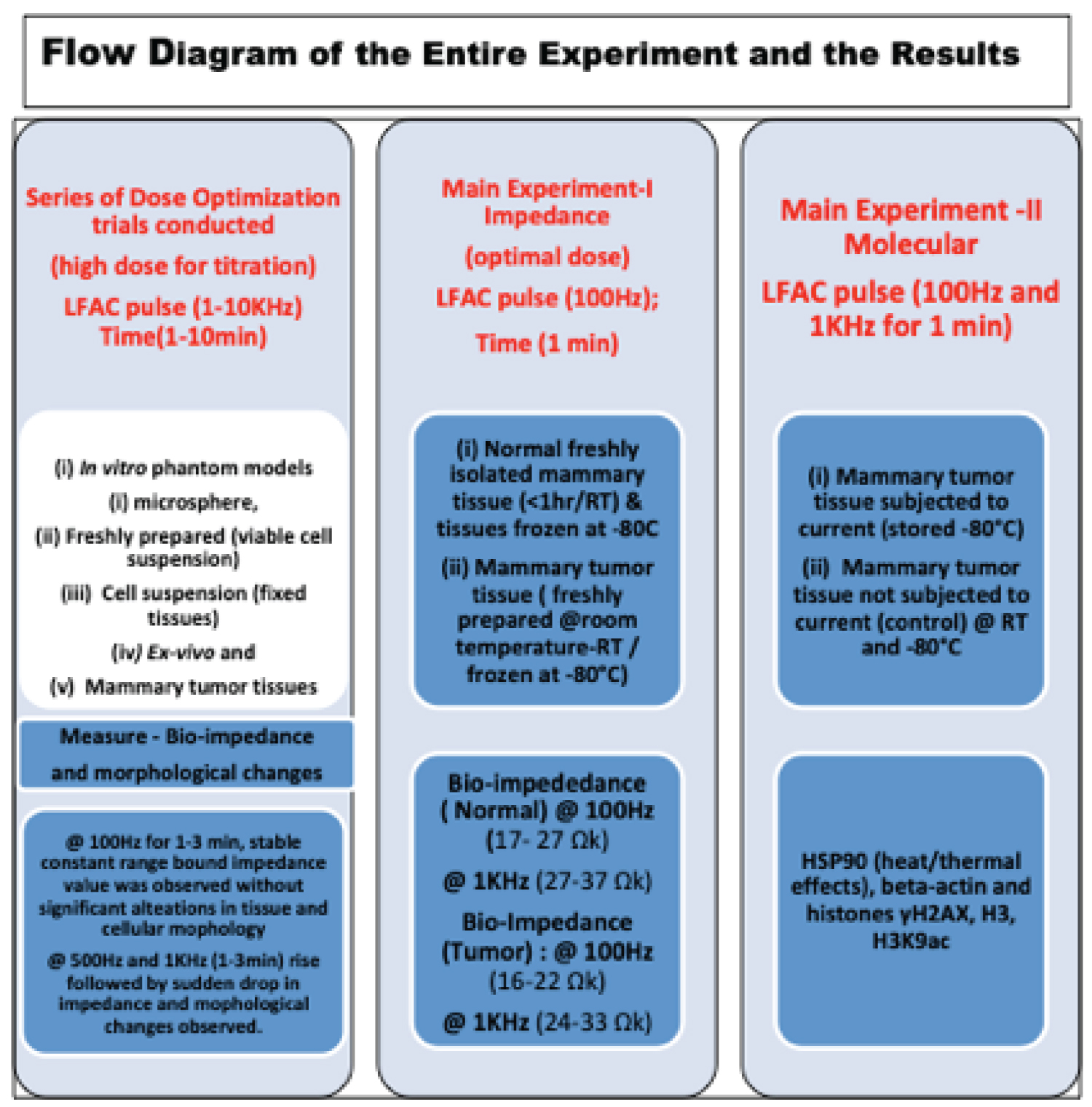

The flowchart presented in Figure 1 depicts the experimental setup of the study and Figure 2 highlights the set up for impedance measurement of cell suspensions and tissue samples. We have highlighted the correlation between impedance and frequency in the flowchart provided as Figure 1, as well as the range determined is mentioned in the results below. The output bio-impedance (Z) was measured at an interval of 3 minutes during the passage of electric current at a frequency of 1-10 kHz for the time period of 1 to 10 minutes. Cell disruption was observed at various time points, when 1.0 kHz or lower frequency was passed though cell suspension beyond 3 minutes duration and at frequency of more than 10 kHz within 1 minute. We observed increase in the tissue bio-impedance (decrease in the capacitance or conductance) value as the frequency of the applied current was gradually increased i.e., bio impedance value for normal tissue was (range 17- 27 Ωk) at 100 Hz applied for a period of 1 minute and it increased to (range 27-37 Ωk) at 1 kHz. We observed lower impedance value of (range 16-22 Ωk) at 100 Hz and (range 24-33 Ωk) at 1 kHz for cancer tissue. The median value of impedance for normal tissue was 34.14 Ωk and for cancer tissue, it was 27.33 Ωk recorded at 1 kHz. Electrical conductivity (falling Z) increased initially when tissue was subjected to the passage of low frequency current compared to the impedance value (resting or recover state) when the passage of the current was stopped. We also observed a sudden fall in impedance value from 40.44 KΩ (Max) to 16.1 KΩ (Min) when the same low frequency (1 kHz) was applied beyond certain duration i.e., 3 minutes or frequency was increased beyond 10 kHz. This is because the cells were not able to withstand such high frequency. The cells were able to withstand 500 Hz frequency with 6 mA of current for 1 minute very well. They remained intact without any morphological changes. The electrical conductivity also did not alter much and the impedance remained high. So, based upon our observation, we considered the safe range between 100 Hz (minimum) to 1 kHz (maximum) of 1 minute duration as the baseline standard for our study. Thus, in our actual experiments, we recorded impedance value for different cell milieu at 1 min of current flow (range bound, consistent, lowest for fresh cell, highest for microsphere).

Effect of low frequency pulsed electric current on unstained microsphere, stained microsphere and cell suspension

Normal microspheres simulating biological cells are shown in Figure 3. No abnormal morphological change and lysis was observed at low frequency (100 Hz) except some increase in size or swelling possibly due to heating effect (Figure 4). While at higher frequency (500 Hz - 1 kHz), applied for more than 1 minute, increased cell swelling, shrinkage or rupture and disintegration was noted (Figure 4, Figure 5 and Figure 6). However, high degree of stability at relatively higher frequency (when microspheres were stained) was observed signifying high entropy. The stability of microspheres increased when stained with acridine orange. Blood samples (RBC’s) as well as cell suspension and microspheres underwent similar morphological changes when subjected to exogenous stress such as low frequency electric current. Enormous amount of heat energy or entropy was created when the microspheres were subjected to low frequency electrical stress for longer duration, which melted the plastic container in which it was contained. Therefore, microsphere model not only defined the safe and effective dose of low frequency electrical current to be applied during in vivo experimentation involving the cancer cells and tissue but also proved to be a robust model to observe the biological and physical response.

Molecular study results

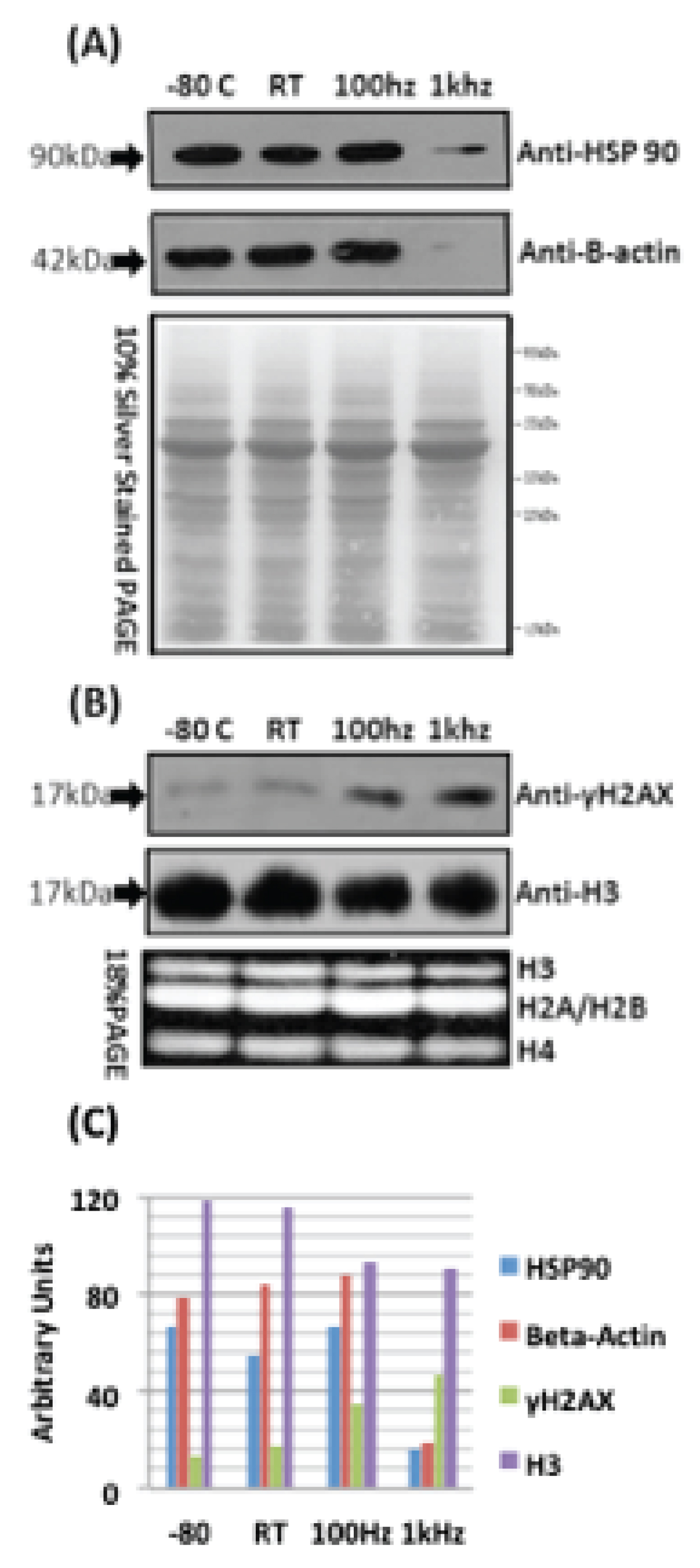

We standardized the western blotting technique for histones, beta-actin, HSP90 to see the effect of electrical energy on the cancer tissues. We did not observe any alterations in the level of unmodified core histone H3 histone, genome instability marker γH2AX and global alterations of histone mark H3K9ac. This showed the effect of low frequency electrical current on the cancer tissue resulting in cell death/rupturing by inducing energy instability within without genotoxicity and epigenetic modifications (Figure 7a and Figure 7b). We have included the densitometry analysis of the western blots as Figure 7c.

Discussion

The role of exogenous or endogenous stress in modulating cancer microenvironment is being increasingly appreciated. The proliferating cancer cells interact constantly with their surrounding stroma and the microenvironment. In addition to various exogenous modalities that alters bioelectric properties of the cells, the cell membrane and the tissues, irreversible electroporation that is application of short pulses of high voltage direct current has also been utilized as a therapeutic technique with some survival benefits but not as a diagnostic tool. However, tissue heterogeneity, persistence of viable malignancy, modulation of immune system, inflammatory response, and epigenetic modifications/genotoxicity remains areas of concerns, and that need further investigation. We believe the recurrence rate will remain high unless cell-specific safe and optimal dose of current specific for specific cells and tissue types, tumor size and grade is titrated and applied under electroporation. Concurrently, one also would require examining its thermal effects on the tissue, which is a subject of controversy as of now. Work is in progress across the world to devise alternate approaches in cancer theranostics using various safer energy sources (other than radiotherapy) such as nano-based dye or agents, electro-hyperthermia, irreversible electroporation using short high voltage direct current pulse and high frequency current to create onco-thermia to kill (apoptosis, death, necrosis) the proliferating cancer cells or disrupt their aggregation as well as image the cells concurrently [25-27,40].

In this study, we manipulated the transmembrane potential, dielectric properties and entropy of both the dead and the viable cells and cancer tissues by applying a low frequency AC current upto 1 mHz, it produced heat as per the laws of thermodynamic as well as induced ionic flux changes. We measured changes in the bio-impedance of tissue or cell suspensions as a function of cells electrical property at a certain calculated optimal low frequency current and at the same time disrupted tumor microenvironment by applying higher stresses. Different responses were measured in normal and cancer cells and tissues i.e., in vitro and freshly prepared viable cell suspensions (freshly prepared samples ex-vivo) and tissues samples. Tumor cells or the excised tissue was subjected to low frequency electric current, an external stimulus, in order to modulate tumor microenvironment so that the underlying pathological as well as physiological phenomena could be studied and understood. We intended to characterize the electrical response of a cell cluster, tissues and also observe the effect of electric stress, heat (joule effect) on normal and cancer cells and tissues. The DNA damage, cell lysis or deaths and other epigenetic and surface protein changes triggered by the extrinsic biophysical electrical (heat or photonic energy) were also be studied. The physics of the system used is based upon the fact that when electric current is conducted through a conducting material, resistance results in a dissipation of energy, usually in the form of heat, thus it can have many effects, notably heating, but they also modulate cancer cells EMF and trigger change in ionic flux disturbance, cell capacitance, permittivity and conductance. We also know that the living cells are energetically active and have self-entropy which is maintain throughout, therefore, stimulation of living system with external energy like current disturbs the entropy of the system leading to thermodynamic instability. Thermodynamic instability exerts physiological and biological effects by heating, up or down regulation of metabolic and other biological pathways. Morphological response at cellular level such as cell swelling, rupture and autolysis was observed besides change in the tissue electrical impedance property. Similar changes were also confirmed in the experiments conducted on the microsphere based phantom model.

Low levels of beta-actin and HSP90 proteins suggested cell surface derangement and/or apoptosis in in-vitro model and high levels of HSP90 and normal to low levels of beta-actin was seen in ex-vivo model. We did not observe any alterations in histone modification that was suggestive of genotoxicity. It was observed that microspheres ruptured at low frequency current when applied for certain duration of time, due to the change in the dielectric properties of the induced cells and the heat (entropy) generated within the system. The microspheres or biological cells bulged and ruptured, when tissue/cell suspension impedance fell. The tissues frozen at -80 °C exerted higher impedance than the fresh prepared viable tissues (kept at room temperature) since the cellular water content of the tissues kept frozen at -80 °C or during fixation process (in vitro) got depleted. Moreover, the cell membrane becomes inert, which reduces the electrical conductivity or permittivity thus raising the impedance. In a nutshell, we can suggest that the methodology developed to record and analyze the bio-signals can be suitably exploited in future by conducting large cells and tissue specific in vivo studies that may help in developing label free (low frequency current) diagnostic biosensor, imaging and therapeutic modalities in cancer.

Conclusion

Conventionally, various imaging modalities, labeled bio-markers or bio-sensors coated with AB, dye, RA agents, growth factors, fluorophores along with gold standard i.e., histo-pathological confirmations are routinely used for cancer diagnostics. So far, not many attempts have been made to exploit and manipulate the electrical or electromagnetic energy/field generated during the process of cell division to develop label free biosensor to classify and identify normal or abnormal cells. This feasibility study generated better understanding of the interactions between tissue/cell and electrical field and responses. These responses were in the form of bio-impedance, morphological change, heat production, changes in DNA and proteins. Since cellular electromagnetic and electrical properties were quantifiable, employing such properties in a large well-designed cell and tissue specific in vitro and in vivo studies can lead to a development of a robust simple cancer screening and theranostics tool in future. The challenge before the onco-scientists is to develop a safe, sensitive and reliable label free electromagnetic device or system, which doesn’t have genotoxic effect, or other local and systemic untoward effects and low recurrence rate when concurrently used as a theranostics tool.
