Murine CD133+CD49flow/+ Cells Derived from ESCs Differentiate into Insulin Producing Cells in vivo

Jesus Ciriza1,3*, Christa Caneda1, Bryce McLelland1 and Jennifer O. Manilay1,2

1Molecular and Cell Biology Unit, University of California, Merced, School of Natural Sciences, USA
2Quantitative and Systems Biology Graduate Group, School of Natural Sciences, University of California, USA
3Biomedical Research Networking Center in Bioengineering, Biomaterials and Nanomedicine, CIBER-BBN, Spain

*Corresponding author: Jesus Ciriza, NanoBioCel Group, Laboratory of Pharmacy and Pharmaceutical Technology, Faculty of Pharmacy, University of the Basque Country UPV/EHU, Vitoria-Gasteiz, 01006, Spain, Tel: +34945014518, E-mail:
Int J Stem Cell Res Ther, IJSCRT-1-004, (Volume 1 Issue 1), Research Article; ISSN: 2469-570X
Received: September 18, 2014 | Accepted: December 28, 2014 | Published: December 31, 2014
Citation: Ciriza J, Caneda C, McLelland B, Manilay JO (2015) Murine CD133+CD49flow/+ Cells Derived from ESCs Differentiate into Insulin Producing Cells in vivo. Int J Stem Cell Res Ther 1:004. 10.23937/2469-570X/1410004
Copyright: © 2015 Ciriza J, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.


Pancreatic progenitors have been identified and isolated during embryonic development showing their potential to differentiate into insulin producing cells after transplantation. Subsequently, they have been proposed as an alternative to the treatment of Type I diabetes. However, fetal pancreata represent a limited donor supply and we proposed that ESC-derivedpancreatic progenitors are another possible option. We isolated committed pancreatic CD133+CD49flow/+ progenitors, expressing neurogenin 3, from insulin producing cells derived from mouse embryonic stem cells in vitro. Here, we demonstrate their potential to differentiate into insulin producing cells in vivo while not forming teratomas. Our results can pave the way for future studies to ascertain the ability of in vitro ESC-derived pancreatic progenitors to be translated for clinical application for Type I diabetes treatments.


Murine embryonic stem cells; Pancreatic progenitors; Type I Diabetes; Teratoma; Kidney capsule transplantation; Insulin producing cells


Worldwide, 347 million people suffer from diabetes [1] and the World Health Organization projects that diabetes will be the 7th leading cause of death by 2030. In the United States, 25.8 million children and adults had diabetes in 2011, representing 8.3% of the total population [2], and costing $116B for treatment and diagnosis. Type 1 diabetes (TID) is an autoimmune disease that aggressively attacks the insulin producing cells (IPCs) in the pancreas, reducing the number of these cells to levels that force the patient to be dependent on daily insulin injections. Islet cell transplantation can be used for treatment, but sources of autologous and allogeneic donor insulin producing cells for transplantation are limited.

Embryonic stem cells (ESCs) have been proposed as an alternative source of insulin producing cells [3]. Major concerns about the use of ESC-derived cells for therapy include their teratoma formation ability and their possible immune rejection after transplantation. Teratoma formation prevented successful treatment of diabetic mice with ESC-derived cells [4] and immune rejection of insulin producing cells derived from ESCs was observed as early as 3 days post-transplantation into immunocompetent mice [5,6]. To improve this outcome, the enrichment of definitive endodermal progenitors by flow cytometric sorting [7,8] could be used to deplete cultures of undifferentiated cells (which are the main sources of teratomas), while the prediction of the immunogenicity of insulin producing cells derived from ESCs (ESC-IPCs) could indicate possible preconditioning regimens for patients that received ESC-IPC transplants.

Several cell culture protocols have been described for the differentiation of murine nontransgenic [3], but three protocols appear to be the most highly utilized [9-11]. The three protocols share the common initial step of embryoid body (EB) formation, but differ in the use of selection of nestin-expressing cells. When compared side by side, ESC-IPC differentiated using the Blyszczuk et al. [11] protocol were able to produce and release more insulin in vitro than those differentiated by the other two methods. However, they only rescued 33% of diabetic mice within 2 weeks and ultimately, these mice developed teratomas [12], likely due to the remaining undifferentiated ESCs in the cultures at the time of transplantation. Exhaustive microarray studies studying gene expression profiles of ESC-IPC at different stages of in vitro differentiation following the Blyszczuk et al. [11] protocol have shown that murine ESC-derived pancreatic cells appear to be blocked at the embryonic/fetal stage of development [13].

In contrast to fully mature IPCs, pancreatic progenitors generated from ESCs (ESC-PPs) might be more suitable for cellular replacement therapy in TID. A homogenous population of ESC-PPs identified by cell surface markers may not self-renew as stem cells do, but could differentiate into endocrine cells after transplantation [14]. For example, Pdx1+Cxcr4+ ESC-derived cells spontaneously differentiated into IPCs in vivo, and led to a sustained correction of hyperglycemia in diabetic mice for a month with survival rates longer than three months [15]. Late definitive endoderm cells can be identified by the combination of E-cadherin and Decay Accelerating Factor (DAF1/CD55) cell surface markers on cells that co-express also Pdx1 [16] (Figure 1). Ngn3+ cells have been suggested to be another possible murine pancreatic progenitor population [17,18]. CD133+CD49flow/+ cells isolated from murine fetal pancreas have been described to express Ngn3 (Figure 1) as well as insulin-1, glucagon, somatostatin and pancreatic polypeptide after 2 days of co-culture with mitomycin C-treated mouse embryonic fibroblast (MEFs) [8]. Moreover, transplanted CD133+ PDFGR β-cells isolated during murine pancreas development induced the formation of IPCs that expressed Cpeptide (a definitive feature of functional insulin production) within 7 days of culture and showed self-renewal properties after serial transplantation, suggesting they might be true pancreatic stem cells [19]. Ngn3+ cells have been also detected in EBs from murine Ngn3-GFP ESC lines expressing insulin, glucagon and Pdx1, among other pancreatic markers, after sorting and differentiation in vitro [20]. However, the identification with cell surface markers of non-transgenic pancreatic progenitor cells expressing Ngn3 from ESC-differentiation cultures and their application in vivo has not yet been reported.

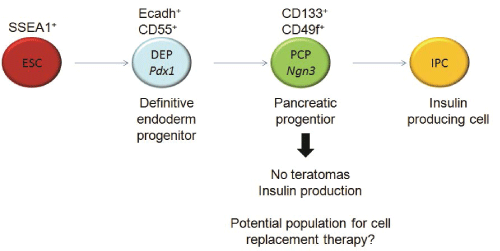

Figure 1: Schematic representation of IPC differentiation: During differentiation from ESC to IPC, definitive endoderm and pancreatic progenitors can be isolated by means of different extracellular markers View Figure 1


Here, we present the identification of CD133+CD49flow/+ and E-cadherin+ CD55+pancreatic progenitor cells from a slightly modified ESC-IPC differentiation protocol. We show that CD133+CD49flow/+ ESC-PPs can be transplanted into the kidney capsule of immunodeficient mice, produce insulin, and do not form teratomas.


Heterogeneous and immature ESC-IPCs are generated using current protocols

We initiated our studies with the ESC-IPC differentiation protocol described by Blyszczuk et al. [11] since it seemed to be the most efficient in terms of insulin production and release [12]. This protocol includes the formation and growth of EBs for 5 days, their expansion for 9 days on gelatin-coated plates and their specific differentiation into IPCs for 18 days on collagen I coated plates with a defined differentiationmedium (Figure 2A). Healthy groups of cells could be observed in vitro after Day 5+16, with aslow as 5% FCS in the media (Figure 2A). Gene expression analysis showed similarities between ESC-IPCs and murine pancreatic β islet samples such as expression of insulin 2 and IAPP with very low expression of somatostatin and amylase (Figure 2B). Genes described to be expressedduring the development of insulin producing cells (Glut2, Nestin, Sox17, Isl1 and cytokeratin19 (CK19)) were also detected at different stages of the differentiation protocol including the final stage at Day 5+28 (Figure 2B). However, in contrast to β islet samples, insulin 1was notdetected at any time of differentiation (Figure 2B).

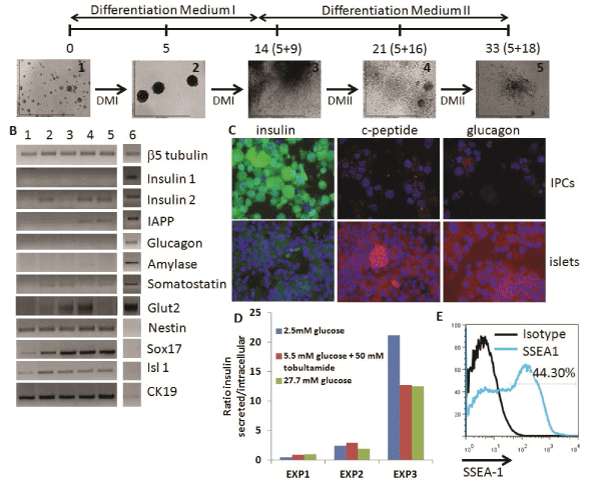

Figure 2: Analysis of ESC-IPCs. A) Scheme of ESC-IPC differentiation protocol. Stages of IPC differentiation: 1: D3-ESC on gelatin, 2: EBs, 3: Day 5+9, 4: Day 5+16, 5: Day 5+28 DMI: Differentiation Medium I and DMII: Differentiation Medium II. B) RT-PCR analysis of stages of IPC differentiation: 1: D3-ESCs, 2: 5+9, 3: 5+16, 4: 5+28, 5: adult whole pancreas, 6: isolated pancreatic islet. C) Immunostaining of ESC-IPCs (top row) and islets (bottom row): insulin (green), c-peptide (red), glucagon (red) and nuclei (blue) (20x magnification). D) Heterogeneous insulin release by IPCs after glucose challenge. E) IPC-ESCs express SSEA-1 (specific marker staining in blue, isotype control in black) View Figure 2


Immunohistochemistry analysis showed a high concentration of insulin accumulated inside the IPCs with low expression of c-peptide, in contrast to the β islet samples (Figure 2C). These data suggested that incomplete insulin processing at the protein level was occurring, and indicated that IPCs were not fully functional. Similarly, glucagon expression was much lower in IPCs than β islets (Figure 2C). The insulin release response in IPCs to glucose stimulation invitro was low and heterogeneous, with higher ratios of release at lower glucose concentrations in some experiments (Figure 2D). Finally, we detected that almost half of the IPCs at Day 5+28 of differentiation expressed SSEA-1 (Figure 2E), which suggested that they were teratoma-forming cells [12]. Based on these results, we next considered a different population of cells for further investigation.

Pancreatic progenitors can be detected in ESC-IPC cultures

We investigated if putative pancreatic progenitors could be identified in vitro during differentiation of ESCs into IPCs (Figure 1). First, using flow cytometry, we analyzed the presence of definitive endoderm progenitors with the cell surface marker phenotype. Ecadh+CD55+, as previously described in vitro with other ES cell lines [16]. Low percentages of Ecadh+CD55+ cells were detected at Day 5+16 of differentiation (mean ± SD: 0.93 ± 0.18 %, n=3) (Figure 3A). Almost all Ecadh+CD55+ cells were SSEA-1+, suggesting a high teratoma formation ability potential if transplanted (Figure 3B).

Figure 3: Identification of definitive endoderm and committed pancreatic progenitors from in vitro IPC-ESC cultures by flow cytometry. A) Live cells at Day 5+16 were analyzed for the expression of E-cadherin and CD55. The gate shows the Ecadherin+CD55+ definitive endoderm progenitors. The data shown are representative of three independent experiments. B) Histogram analysis of SSEA1 expression on Ecadherin+CD55+ definitive endoderm cells. C) Live cells at Day 5+16 were analyzed for the expression of CD133 and CD55. The gate shows the CD133+CD49flow/+ committed pancreatic progenitors. Data shown are representative of three independent experiments. D) Histogram analysis of SSEA1 expression on CD133+CD49flow/+ committed pancreatic progenitors View Figure 3


We then searched for pancreatic progenitors that were more differentiated than definitive endoderm progenitors and with less potential of forming teratomas (Figure 1). In vivo, murine and human committed pancreatic progenitors have been identified by the CD133+CD49flow/+ cell surface phenotype, and their potential to differentiate in vitro into insulin producing cells has been verified [8,9]. We were able to quantify an average of 4.07 ± 1.29 % of CD133+CD49flow/+ pancreatic progenitors at Day 5+16 in our IPC differentiation cultures (Figure 3C). This higher frequency of cells, compared to Ecadh+CD55+cells, allowed for the collection of enough cells by flow cytometry to analyze their gene expression. CD133+CD49flow/+ pancreatic progenitors did not express insulin-2, but expressed Ngn3, indicating that they belong to an earlier developmental stage, but were committed to differentiate into IPCs (Figure 3C). These progenitors did not express either pancreatic marker such as Pdx1or Pax4 by RT-PCR (data not shown). CD133+CD49flow/+ pancreatic progenitors also expressed SSEA-1 (Figure 3D). The expression of SSEA-1 indicated their potential to form teratomas, which we then tested in vivo.

CD133+CD49flow/+ pancreatic progenitors did not form teratomas and expressed insulin

First, we transplanted 106 SSEA1+ D3-ESCs under the kidney capsule of NSG mice and all mice developed teratomas by 28 days post-transplantation, as expected (Figure 4A, panel 1). Conversely, as a negative control for teratoma formation, we transplanted 300 islets isolated from adult pancreas and they did not form teratomas (Figure 4A, panel 5). We then tested the ability of our ESC-IPCs to form teratomas after transplantation. First, we confirmed that IPCs at Day 5+28 of differentiation expressed insulin 2, and then we transplanted 4-6x106 IPCs. All of the IPC-recipient mice developed teratomas by 28 days after transplantation (Figure 4A, panel 2). This result confirmed previous results [11] and justified the exploration of an alternative ESC-derived cell population for the replacement of insulin.

Figure 4: Engraftment and teratoma formation analysis of ESC-IPCs and ESC-PPs in vivo. A) Macroscopic observations of kidneys on Day 28 after transplantation of: 1: 106 ESCs; 2: 6x106 IPC-ESCs (expressing insulin 2, inset); 3: 5x105 CD133+CD49flow/+ committed pancreatic progenitors; 4: :5x105 CD133+CD49flow/+SSEA1- committed pancreatic progenitors; 5: 300 islets (positive for c-peptide); and 6: no cells (sham control). B) Comparison of kidney sizes after transplantation (*: p< 0.05 and ***: p< 0.001). C) Hematoxylin/eosin staining from kidney sections transplanted with: 1: 106 ESCs; 2: 6x106 IPC-ESCs; 3:5x104 CD133+CD49flow/+ committed pancreatic progenitors; 4: 5x104 CD133+CD49flow/+SSEA1- committed pancreatic progenitors and 5: 300 islets View Figure 4

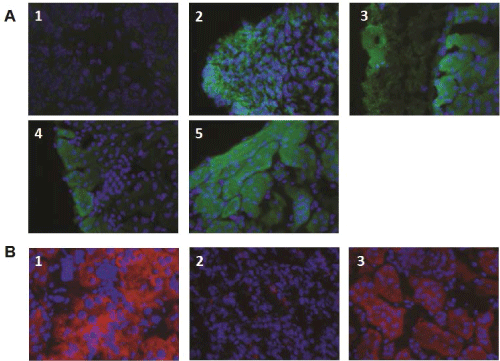

Figure 5: Insulin and c-peptide expression in kidneys transplanted with ESC-IPCs and ESC-PPs. (A) Kidney sections were stained for insulin from mice transplanted with: 1: 106 ESCs; 2: 6x106 IPC-ESCs; 3:5x105 CD133+CD49flow/+ committed pancreatic progenitors; 4: 5x104 CD133+CD49flow/+SSEA1- committed pancreatic progenitors; and 5: 300 islets. (B) Kidney sections were stained for c-peptide from mice transplanted with: 1: 5x104 CD133+CD49flow/+ committed pancreatic progenitors; 2: 5x104 CD133+CD49flow/+SSEA1- View Figure 5


We hypothesized that more immature pancreatic progenitors could be generated, isolated and transplanted in vivo, and that after transplantation, they would not form teratomas and would produce insulin. As mentioned above, CD133+CD49flow/+ cells have been demonstrated to be pancreatic progenitors (PPs) in mouse embryos [8] and we confirmed that CD133+CD49flow/+ cells were generated in our in vitro cultures. We tested the function and potential of these CD133+CD49flow/+ ESC-PPs to form teratomas in vivo. Since SSEA-1 expression is often equated with pluripotency and teratoma-forming ability in ESCs, we also compared the behavior of sorted SSEA-1- CD133+CD49flow/+ ESC-PPs. We transplanted 5x104pancreatic progenitors (SSEA1+ depleted or not) as previously described [8]No teratomas were observed in mice transplanted with either population (Figure 4A, panels 3,4). No significant differences were found amongst the sizes of the kidneys transplanted with ESC-PPs, islets or sham controls (Figure 4B), a result that correlated with a lack of teratoma forming ability in ESC-derived PPs. The absence of teratoma formation in recipients of CD133+CD49flow/+ or SSEA-1- CD133+CD49flow/+ ESC-PP cells was confirmed by histological analysis of kidney sections from the transplanted mice (Figure 4C, panels 3,4). In contrast, teratomas were clearly observed in kidneys transplanted with ESCs and ESC-IPCs (Figure 4C, panels 1,2). ESC-IPCs, CD133+CD49flow/+ ESC-PPs, SSEA-1- CD133+CD49flow/+ ESC-PPs and islets exhibited positive staining for insulin (Figure 5A, panels 2-5), whereas sections of kidney capsules transplanted with ESCs did not (Figure 5A, panel 1). Insulin production was confirmed via the observation of strong c-peptide expression in the kidneys thatwere transplanted with CD133+CD49flow/+ ESC-PPs and control islets (Figure 5B, panels 1,3). SSEA-1-CD133+CD49flow/+ ESC-PPs showed positive, but lower expression of c-peptide (Figure 5B, panel 2).


We generated ESC-IPCs that express endocrine genes such as insulin 2, glucagon and somatostatin, and our data showed that ESC-IPC cultures heterogeneously secrete insulin protein, corroborating the findings of other groups [12]. Based on the lack of peptide signal by immunohistochemistry, we posit that the insulin is not completely processed intracellularly within ESC-IPCs and consequently, is not released properly outside the cell. One possible reason for this non-functional insulin release is incomplete differentiation of the ESCIPCs, resulting in a cell that is devoid of fully developed mechanisms for insulin processing. Other groups have suggested that the detection of insulin from ESC-IPCs is an artifact from apoptotic or necrotic cells [21] or a mixture of de novo insulin production mixed with insulin uptake from the medium [22] and this controversy is still unresolved. In our hands, insulin release from ESC-IPCs after glucose challenge varied widely from experiment to experiment, perhaps reflecting the presence of a heterogenous mixed of cells that are generated in each independent ESC-IPC culture [12]. The immature nature of ESC-IPCs, their inconsistent release of insulin, and their propensity to form teratomas precludes their clinical translation for the treatment of hyperglycemia in diabetic patients.

In contrast, we confirmed that ESC-derived CD133+CD49flow/+ pancreatic progenitor cells did not form teratomas after 28 days of in vivo transplantation. This was surprising, as 50% of CD133+CD49flow/+ cells expressed SSEA1, which is often associated with pluripotency. It has been previously hypothesized that human pancreas cells that are positive for stage-specific embryonic antigen 4 (SSEA4) co-express ductal pancreatic progenitor markers and can be differentiated in vitro to pancreatic hormone-expressing cells [23]. We hypothesize that SSEA1 could be a murine marker for pancreatic progenitors, sharing similarities to human SSEA4 as a murine ductal pancreatic progenitor marker. However, after transplantation in vivo, SSEA-1-CD133+CD49flow/+ ESC-PPs expressed lower c-peptide levels than CD133+CD49flow/+ ESC-PPs, a result which suggests that some pancreatic progenitors may be depleted if the SSEA1 marker is used for isolation of PPs. Regardless of the expression of SSEA1, both unfractionated CD133+CD49flow/+ and sorted CD133+CD49flow/+SSEA1+populations did not form teratomas in vivo.

It is possible that the lack of teratoma-formation we observed is simply due to the transplantation of insufficient numbers of cells required to form teratomas in vivo. We do not feel this is the case, as we selected our cell dosage based on previous studies in which the same minimal cell dose resulted in 100% teratoma-forming ability after transplantation into immunodeficient mice [8,24,25]. The lack of teratoma-forming ability and the clear expression ofinsulin and C-peptide in both unfractionated CD133+CD49flow/+ and sortedCD133+CD49flow/+SSEA1+ populations lead us to conclude that PPs are a potentially feasible cellular therapy.

One challenge to the use of ESC-derived cells is that in vitro differentiation of ESCs to specific cell lineages may not necessarily produce cells that express the same cell surface markers as their in vivo-derived counterparts [26]. To our knowledge, our study is the first to identify murine pancreatic progenitor populations derivedfrom ESCs in culture, and we have confirmed that ESC-derived CD133+CD49flow/+ cells arefunctionally similar to their in vivo counterparts in mouse embryos. Clearly, improvements in the generation of higher yields of pancreatic progenitor cells are required for practical application, and this could be achieved by discovery of methods to block unwanted lineage differentiation, as well as scaled up production and isolation by means of bioreactors and other stem cell separation technologies [27].

In conclusion, we have identified mouse ESC-derived pancreatic progenitor cells in vitro and discovered that they can survive and produce insulin in vivo. We envision that our phenotypic and functional data could be further utilized to study and improve the long-term survival of in vitro derived pancreatic progenitor cells and their ability to produce insulin in sufficient quantities to alleviate hyperglycemia in humans.
